- Model :BST-Y/（Q）-1.5T
- Evaporation(kg/h): 1500kg
- Pressure(Mpa): 0.8（8 Bar )
- Temperature: 171
- Voltage(V): customized
- Consumption: natural gas/LPG (m³/h):97.5m³/hourh
- Dimensions(mm): 3930*1560*2680
- Net weight :4500kg
- Steam generator liner：National standard carbon steel Q245R material
- Strong anti-oxidation case：GB carbon steel Q235B material
- Insulation Materials: High density aluminum silicate felt
- Intelligent control system：7 inch microcomputer controller
- Liquid level controller：computer control system
- High pressure vortex pump：220V/380V-1100W-140M
- Computer controller：9511.220V
- Energy saver:BST-JN395*1500
- Steam separator:BST-SS480*1300
- Adjustable pressure controller:LP10（0-1.6MPa）
- Pressure gauge:Radial 100 PN1.6
- AC condition :0910 220V *6 1810 220V*1
- High temperature brass ball valve;DN25 PN16/DN15
- High temperature ball valve (flange):DN25 PN16
- Safety valve：flange DN40 A48Y-16
- Water level gauge：3 points φ12*3*250MM
- Inlet check valve:DN20
- leakage protector：63A
- Main steam diameter (DN):Flanged globe valve DN65 PN16
- Water inlet diameter (DN):DN25*1
- Safety valve diameter ：flange 50*2 A48Y-16
- Drain valve diameter (DN):High temperature check DN25*PN16

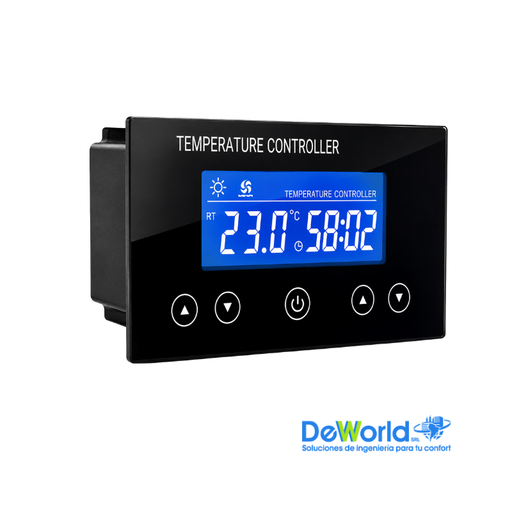

- Tensión: 220VAC, 50Hz 1F
- Rango de temperatura: 0 - 110°C
- NTC sensor

- Tensión: 220VAC, 50Hz 1F
- Rango de temperatura: 0 - 110°C
- NTC sensor
- Temporizador: 1 - 99min
- Dimensiones: 116x68x41mm
- Carga resistiva: 220Vx5A=1100W

- Tensión: 220VAC, 50Hz 1F
- Rango de temperatura: 0 - 110°C
- NTC sensor
- Temporizador: 1 - 99min
- Dimensiones: 178x108mm
- Salida: rele 2x30A

- Model : BST-Y/(Q)-0.5T
- Evaporation(kg/h): 500kg
- Pressure(MPa): 0.70 (7 Bar)
- Temperature: 171
- Voltage(V): customized
- Consumption: natural gas/LPG (m³/h): 45m³/h
- Dimensions (mm): 1900*1050*2100
- Net weight :1450kg
- Steam generator liner: National standard carbon steel Q245R material
- Strong anti-oxidation case: GB carbon steel Q235B material
- Insulation Materials: High density aluminum silicate felt
- Intelligent control system: 7 inch microcomputer controller
- Liquid level controller: Computer control system
- High pressure vortex pump: 220V-750W
- Computer controller: 9511.220V
- Safety valve: Flange DN40 A28Y-16C
- AC contactor: 3 points φ12*3*250MM
- Leakage protector: 100A
- Steam ball valve internal thread : DN40 PN10
- Main steam diameter (DN): DN40 PN10
- Water inlet diameter (DN): DN25
- Drain valve diameter (DN): DN25
- High temperature check valve: DN20

- Model : BST-Y/(Q)-0.3T I-B
- Evaporation(kg/h): 300kg
- Pressure(MPa): 0.70 (7 Bar)
- Temperature: 171
- Voltage(V): 220V, 50Hz
- Consumption: natural gas/LPG (m³/h): 18.9m³/h
- Dimensions (mm): 1600*900*1780
- Net weight :670kg
- Steam generator liner: National standard carbon steel Q245R material
- Strong anti-oxidation case: GB carbon steel Q235B material
- Insulation Materials: High density aluminum silicate felt
- Intelligent control system: 7 inch microcomputer controller
- Liquid level controller: Computer control system
- High pressure vortex pump: 220V-750W
- Computer controller: 9511.220V
- Safety valve: Flange DN40 A28H-16C
- AC contactor: 3 points φ12*3*250MM
- Leakage protector: 100A
- Steam ball valve internal thread : DN40 PN10
- Main steam diameter (DN): DN40 PN10
- Water inlet diameter (DN): DN25
- Drain valve diameter (DN): DN25
- High temperature check valve: DN20
